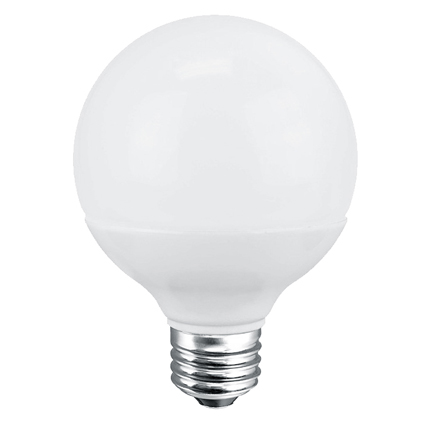

| Product Name: | G95/120 Series |
| Key Features | ◆ LED Bulb G95/120 series ,12W,15W,18W,20W
◆ Constant Current And Voltage (IC) solution
◆ Input 110VAC,220VAC or wide range
◆ Material: Aluminum coated with plastic +plastic cover
◆ E27 base
◆ CCT WW (2700-3500K), PW (4000-4500K) or CW (6000-6500K)
◆ Beam Angle 220°
◆ Lumen: 85LM/W
◆ PF 0.5 or 0.9, Life span 20000hrs
◆ Warranty 2 years
◆ Up to 80% energy saving compared to incandescent lamps |  | | Technical Specifications |
|
MODE |
G95-12A05 |
G120-15A05 |
G120-18A05 |
G120-20A05 |
|
POWER |
12W |
15W |
18W |
20W |
|
RATED VOLTAGE |
110V/220V |
110V/220V |
110V/220V |
110V/220V |
|
BASE |
E27 |
E27 |
E27 |
E27 |
|
CORRELATED COLAR TEMP.(CCT) |
2700-6500K |
2700-6500K |
2700-6500K |
2700-6500K |
|
COLOR RENDERING INDEX (CRI) |
>80 |
>80 |
>80 |
>80 |
|
POWER FACTOR(PF) |
0.5 |
0.5 |
0.5 |
0.5 |
|
BODY MATERIAL |
Plastic + AL |
Plastic + AL |
Plastic + AL |
Plastic + AL |
|
LED |
SMD2835,Sanan |
SMD2835,Sanan |
SMD2835,Sanan |
SMD2835,Sanan |
|
LIFE SPAN |
20,000 hrs |
20,000 hrs |
20,000 hrs |
20,000 hrs |
|
ON-OFF TIMES |
100,000 |
100,000 |
100,000 |
100,000 |
|
DIMMABLE |
NO |
NO |
NO |
NO |
|
LUMEN |
690Lm |
1275Lm |
1440Lm |
1600Lm |
|
BEAM ANGLE |
220° |
220° |
220° |
220° |
|
DIMENSION(mm) |
Φ95*135 |
Φ95*135 |
Φ120*160 |
Φ120*160 |
|
WARRANTY |
2 years |
2 years |
2 years |
2 years |
|
PCS /CARTON |
50 |
32 |
32 |
32 |
|
CARTON SIZE(mm) |
500×500×301 |
507×507×351 |
507×507×351 |
507×507×351 |
|
N.W (KG) |
7.0 |
6.5 |
6.5 |
6.5 |
|
G.W (KG) |
10.2 |
10.9 |
10.9 |
10.9 |
|
REMARK |
Input Range |
110V: 100-130V, 220V: 175-265V. Wide range 85-265V |
|
Color Box MOQ |
3000PCS |
|
CCT |
Warm white(WW) 2700-3500K;Natural white(NW)4000-4500K;Cold white(CW) 6000-6500K |
|
Power Factor |
normal as the above, 0.9PF is welcome, need mention before order |
|
|
|
|
|
|
