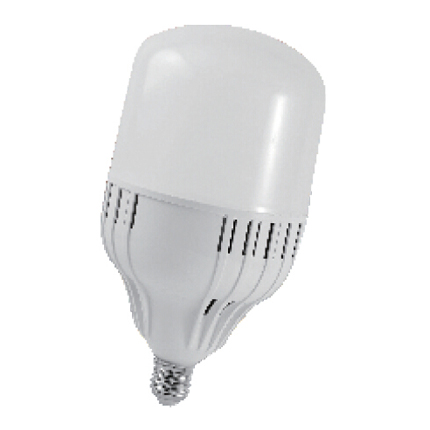

| Product Name: | T80/100/120 Series |
| Key Features | ◆ LED Bulb T80/100/120 series ,20W,30W,40W
◆ Constant Current And Voltage (IC) solution
◆ Input 110VAC,220VAC or wide range
◆ Material: Aluminum coated with plastic +plastic cover
◆ E27 base
◆ CCT WW (2700-3500K), PW (4000-4500K) or CW (6000-6500K)
◆ Beam Angle 270°
◆ Lumen: 85LM/W
◆ PF 0.5 or 0.9, Life span 20000hrs
◆ Warranty 2 years
◆ Up to 80% energy saving compared to incandescent lamps |  | | Technical Specifications |
|
Product Series |
T80/100/120 |
|
MODE |
T80-20A08 |
T100-30A08 |
T120-40A08 |
|
Power |
20W |
30W |
40W |
|
Rated Voltage |
110V/220V |
110V/220V |
110V/220V |
|
Base |
E27 |
E27 |
E27 |
|
Correlated Color Temp.(CCT) |
2700-6500K |
2700-6500K |
2700-6500K |
|
Color Rendering Index (CRI) |
>80 |
>80 |
>80 |
|
Power Factor(PF) |
0.5 |
0.5 |
0.5 |
|
Body material |
Plastic + AL |
Plastic + AL |
Plastic + AL |
|
LED |
SMD2835,Sanan |
SMD2835,Sanan |
SMD2835,Sanan |
|
life span |
20,000 hrs |
20,000 hrs |
20,000 hrs |
|
on-off times |
100,000 |
100,000 |
100,000 |
|
Dimmable |
NO |
NO |
NO |
|
Lumen |
1700Lm |
2550Lm |
3400Lm |
|
Beam Angle |
270° |
270° |
270° |
|
Dimension (mm) |
Φ80*135 |
Φ100*170 |
Φ120*200 |
|
Warranty |
2 years |
2 years |
2 years |
|
PCS /Carton |
50 |
50 |
32 |
|
Carton Size (mm) |
425×425×301 |
525×525×371 |
507×507×431 |
|
N.W (KG) |
10.0 |
15.0 |
13.8 |
|
G.W (KG) |
14.3 |
19.9 |
18.8 |
|
Remark |
Input Range |
110V: 100-130V, 220V: 175-265V. Wide range 85-265V |
|
Color Box MOQ |
3000PCS |
|
CCT |
Warm white(WW) 2700-3500K;Natural white(NW)4000-4500K;Cold white(CW) 6000-6500K |
|
Power Factor |
normal as the above, 0.9PF is welcome, need mention before order |
|
|
|
|
|
