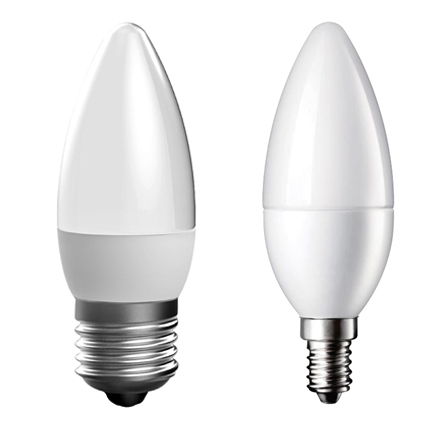

| Key Features | ◆ LED Bulb 37 series ,3W,5W,7W
◆ Constant Current And Voltage (IC) solution
◆ Input 110VAC,220VAC or wide range
◆ Material: Aluminum coated with plastic +plastic cover
◆ E14 or E27 base
◆ CCT WW (2700-3500K), PW (4000-4500K) or CW (6000-6500K)
◆ Beam Angle 160°
◆ Lumen: 85LM/W
◆ PF 0.5 or 0.9, Life span 20000hrs
◆ Warranty 2 years
◆ Up to 80% energy saving compared to incandescent lamps
|  | | Technical Specifications |
|
Product Series |
C37 |
|
MODE |
C37-3A02 |
C37-5A02 |
C37-7A02 |
|
Power |
3W |
5W |
6.5W |
|
Rated Voltage |
110V/220V |
110V/220V |
110V/220V |
|
Base |
E14/E27 |
E14/E27 |
E14/E27 |
|
Correlated Color Temp.(CCT) |
2700-6500K |
2700-6500K |
2700-6500K |
|
Color Rendering Index (CRI) |
>80 |
>80 |
>80 |
|
Power Factor(PF) |
0.5 |
0.5 |
0.5 |
|
Body material |
Plastic + AL |
Plastic + AL |
Plastic + AL |
|
LED |
SMD2835,Sanan |
SMD2835,Sanan |
SMD2835,Sanan |
|
life span |
20,000 hrs |
20,000 hrs |
20,000 hrs |
|
on-off times |
100,000 |
100,000 |
100,000 |
|
Dimmable |
NO |
NO |
NO |
|
Lumen |
240Lm |
400Lm |
480Lm |
|
Beam Angle |
160° |
160° |
160° |
|
Dimension (mm) |
Φ37*106 |
Φ37*106 |
Φ37*106 |
|
Warranty |
2 years |
2 years |
2 years |
|
PCS /Carton |
200 |
200 |
200 |
|
Carton Size (mm) |
405×405×255 |
405×405×255 |
405×405×255 |
|
N.W (KG) |
7.6 |
7.7 |
7.7 |
|
G.W (KG) |
10.7 |
10.8 |
10.8 |
|
Remark |
Input Range |
110V: 100-130V, 220V: 175-265V. Wide range 85-265V |
|
Color Box MOQ |
3000PCS |
|
CCT |
Warm white(WW) 2700-3500K;Natural white(NW)4000-4500K;Cold white(CW) 6000-6500K |
|
Power Factor |
normal as the above, 0.9PF is welcome, need mention before order |
|
|
|
|
|
