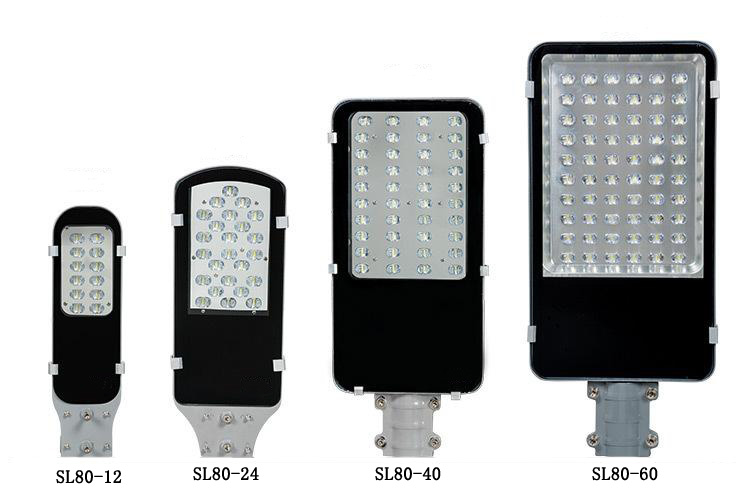

Product Name: SL80 Series
 Key Features
◆ High bright  LED Street Light,
◆ SL80 series , 12W, 24W, 30W, 36W, 40W, 60W, 80W, 100W
◆ Input 85-265VAC  or 12/24VDC
◆ Light body: Die-casting Aluminum Alloy housing
◆ Mask: high transmittance,high quality tempered glass,
◆ Driver with CE, silicone perfusion, waterproof heat stronger,
◆ Radiator: Integration aluminum + convection design,
◆ Power cord: bold industrial grade copper wire,
◆ Waterproof: IP65
◆ Whole light luminous efficacy ≥85lm/w
◆ lifespan >50,000 hours
◆ CCT 3000~6000K
◆ Great illuminating angle: 120°
◆ Aging test at least 12 hours for all LED light source,driver before shipment.
◆ Warranty 3 years
 Technical Specifications

Model

SL80-12

SL80-24

SL80-30

SL80-36

SL80-40

SL80-60

SL80-80

SL80-100

POWER

12W

24W

30W

36W

40W

60W

80W

100W

DRIVER

Standard CE driver

Standard CE driver

Standard CE driver

Standard CE driver

Standard CE driver

Standard CE driver

Standard CE driver

Standard CE driver

LED CHIP

Epistar

Epistar

Epistar

Epistar

Epistar

Epistar

Epistar

Epistar

LED BEAD

12*1W

24*1W

30*1W

36*1W

40*1W

60*1W

80*1W

100*1W

CASING MATERIAL

Aluminum

Aluminum

Aluminum

Aluminum

Aluminum

Aluminum

Aluminum

Aluminum

ANGLE REGULATION

No adjustable

No adjustable

No adjustable

No adjustable

No adjustable

No adjustable

No adjustable

No adjustable

VOLTAGE

85-265VAC,
12/24/48VDC

85-265VAC,
12/24/48VDC

85-265VAC,
12/24/48VDC

85-265VAC,
12/24/48VDC

85-265VAC,
12/24/48VDC

85-265VAC,
12/24/48VDC

85-265VAC,
12/24/48VDC

85-265VAC,
12/24/48VDC

FREQUENCY

50/60 Hz

50/60 Hz

50/60 Hz

50/60 Hz

50/60 Hz

50/60 Hz

50/60 Hz

50/60 Hz

POWER FACTOR

>0.95

>0.95

>0.95

>0.95

>0.95

>0.95

>0.95

>0.95

LUMINOUS FLUX (lm)

1020lm

2040lm

2550lm

3060lm

3400lm

5100lm

6800lm

8500lm

CORRELATED COLOR TEMP.(CCT)

3000K-6000K

3000K-6000K

3000K-6000K

3000K-6000K

3000K-6000K

3000K-6000K

3000K-6000K

3000K-6000K

COLOR RENDERING INDEX (CRI)

80

80

80

80

80

80

80

80

BEAN ANGLE

120°

120°

120°

120°

120°

120°

120°

120°

PROTECTION GRADE

IP65

IP65

IP65

IP65

IP65

IP65

IP65

IP65

LIFE SPAN

50000H

50000H

50000H

50000H

50000H

50000H

50000H

50000H

WARRANTY

2 years

2 years

2 years

2 years

2 years

2 years

2 years

2 years

AMBIENT HUMIDITY

≤95%

≤95%

≤95%

≤95%

≤95%

≤95%

≤95%

≤95%

AMBIENT  TEMP.

-20°C~50°C

-20°C~50°C

-20°C~50°C

-20°C~50°C

-20°C~50°C

-20°C~50°C

-20°C~50°C

-20°C~50°C

PCS/CARTON

30

20

6

6

6

1

1

1

PRODUCT SIZE (mm)

350*105*65

390*140*65

495*215*70

495*215*70

495*215*70

650*280*70

805*345*70

955*435*70

PACKING SIZE (mm)

700*360*430

630*420*440

540*490*240

540*490*240

540*490*240

620*290*110

620*290*110

620*290*110

N.W.(kg)

0.91

1.34

3.03

3.37

3.37

4.98

6.14

7.3

REMARK

1.For the LED Street light, still need Pole, PV Panel , PV mounting,Solar Charge Controller, Solar Battery and Battery Box. pls inquire while need.

2.CCT: Warm white(WW) 2700-3500K;Natural white(NW)4000-4500K;Cold white(CW) 6000-6500K
