◆Pure sine wave high frequency design

◆Small and light, high efficiency

◆Lower static current

◆Full protection for over temperature, over load and short circuit

◆With USB port

◆LED or digital display and alarm

◆Aluminous case

◆Fan cooling

◆Use for off grid solar power system and the others

MODEL	JDSW300 (D)	JDSW600 (D)	JDSW1200 (D)	JDSW1500 (D)	JDSW 2200W(D)	JDSW 3000W(D)
DC INPUT VOLTAGE	12/24VDC	12/24VDC	12/24VDC	12/24VDC	12/24VDC	12/24VDC
DC INPUT RANGE	11V-15VDC or 22-30VDC
OUTPUT CAPACITY	300W	600W	1200W	1500W	2200W	3000W
SURGE CAPACITY	480W	960W	1920W	2400W	4400W	6000W
STATIC CURRENT	《0.7A	《0.85A	《0.9A	《0.95A	《1.00A	《1.05A
THD	≤5％
EFFICIENCY(FULL LOAD)	≥85％
MAX EFFICIENCY	≥90％
OUTPUT VOLTAGE(NO LOAD)	110V or 220V
OUTPUT FREQUENCY	50 or 60HZ±0.5HZ
USB OUTPUT	5V 500Ma
BATTERY LOW ALARM	10.2V-10.8V or 20.4V-21.6V
BATTERY LOW CUT POINT	9.2V-9.8V or18.4V-19.6V
RESUME VOLTAGE	11.7V-12.3V or 23.4V-24.6V
SHUT OFF VOLTAGE AT OVER-VOLTAGE	15.0V-16.0V  or 30V-32V
OVER LOAD PROTECTION	Yes
OVERCURRENT PROTECTION	Yes
SHORT CUICIRT	Yes
OVER TEMP. PROTECTION	Yes

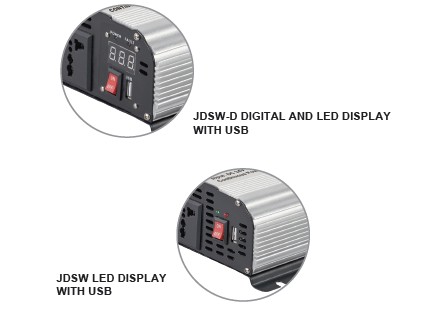

LED DISPLAY	Green LED (Power) Red( Fail or protection ), JDSW and JDSW-D
Digital display	AC ON (888), I/P VAC (U)  O/P Watts (P), JDSW-D only
Product Size(mm)	335*214*73mm	335*214*73mm	460*214*73mm	460*214*73mm	355*250*180mm	355*250*181mm
Carton size(mm)	425*390*250	425*390*250mm	550*265*250mm	550*265*250mm	460*315*250mm	460*315*250mm
Carton weight (kg)	10.8	11.2	9.6	9.8	6.6	9
PCS /CTN	3	3	2	2	1	1
