Product Name:

3 in 1 OFF Grid Hybrid Solar Inverter SPG 0.6-3KVA

Key Features

◆ Low frequency pure sine wave Grid Hybrid off Grid Power Inverter

◆ 3 in 1 Off Grid design, Inverter +Grid Charger+MPPT solar charge controller

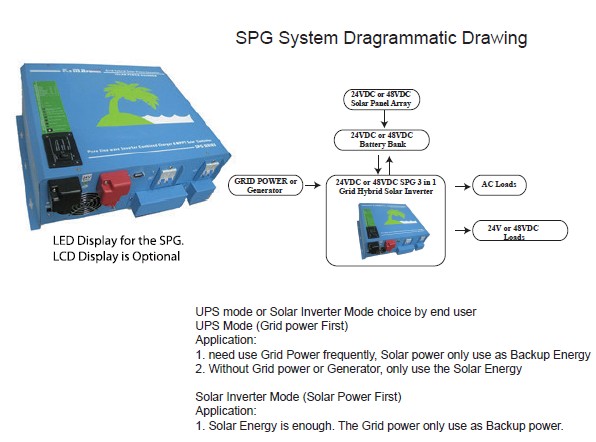

◆ Selectable Grid power First or Solar Power First (battery power First)

◆ Transfer Time 10ms. Computer will not shut off when Mains off suddenly.

◆ Digital control three stage charger, improve battery life

◆ With Battery Selector for charge of different battery

◆ Power saver Function (Stand by)

◆ High Power Factor0.9-1

◆ Low idle current to reduce energy consumption

◆ Low DC input, 1-3KW/12V (24/48) VDC, 4-6KW/24V (48) VDC

◆ Big charge current, 35A-75Amp for different mode

◆ Back-Feed Protection

◆ Full protection, short circuit, Overload, over Temp., Battery low/high Protection

◆ Fault recovery

◆ LED display and alarm

◆ Remove control solution

◆ Rs232 communication function optional for LED Type

◆ SNMP Net Agent function optional for LED type

◆ Remove control cable optional

◆ LCD Display is optional

Technical Specifications

Mode	SPG500	SPG1000	SPG1500	SPG2000	SPG3000
Continuous power (W)	500W	1000W	1500W	2000W	3000W
Surge capability (W)	1500W	3000W	4500W	6000W	6000W
System DC input (VDC)	12V or 24VDC	24VDCV	24VDC	24VDC	24VDC
AC Output	110 / 120V/ 220V/230V ±5%, 50HZ or 60HZ. Terminal
AC Output waveform	Pure Sine Wave
DC output	12VDC or 24VDC Terminal
Efficiency	>85%
AC/DC Charger	Max 15A	Max 25A	Max 25A	Max 40AMP	Max 50
Solar Charge Controller	MPPT,20AMP	MPPT,30AMP	MPPT,40AMP	MPPT,50AMP	MPPT 48VDC40AMP / 24VDC 80AMP
Advised PV Cell	36 or 72 Cell	72 Cell	72 Cell	72 Cell	72 Cell or 72 Cell in series
Advised PV output Amp	< 20AMP	< 30 AMP	< 40AMP	< 50AMP	< 40AMP or 80 AMP
External battery back	12 or 24VDC	24VDC	24VDC	24VDC	24VDC or 48VDC
Breakers	with Breakers for AC Input , AC output, PV input , DC output
Battery low protection	YES
Over discharge protection	YES
Resume voltage	YES. When fault remove
Over voltage protection	YES
Overload protection	YES
With cooling fan	YES
Display	LED for Inverter, charger, Battery Capacity state, DC load state and fault. LCD display is optional
Running Temperature	-35 degree to 55 degree
High temperature protection	YES
Short circuit protection	YES
Reverse polarity protection	YES. Only for DC load side.
Stand by	YES. continuo output while > 25W
Communication	RS232 Power Manager, Net Agent SNMP , Optional for LED mode
Product Size(mm)	486400181	486400181	486400181	486400180	486400180
Package Size(mm)	605560293	605560293	605560293	605560293	605560293
Package weight( kg)	18KG	19KG	20KG	22.5KG	27KG
