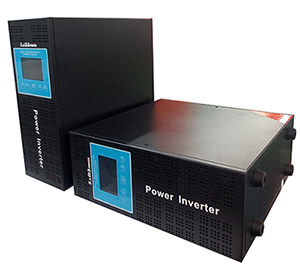

Product Name: 3:1 OFF Grid Hybrid Solar Inverter ZYSW-TS0.6-1.5K
 Key Features
¡ô Smart low frequency OFF Grid Hybrid Solar Power Inverter 600VA-1500VA
¡ô 3 in 1 design, Inverter +Grid Charger+PWM solar charge controller
¡ô LCD Pure sine wave output with AVR
¡ô Smart setup and simple operation by LCD
¡ô Selectable Grid power priority or Solar Power priority
¡ô Selectable  charge voltage and current  to extend battery life
¡ô Selectable 145-270V or 100-290V grid input range
¡ô Adjustable solar charge current,  MAX 50A
¡ô Auto transfer time 10 Ms, UPS design
¡ô Smart Charging ,Off Charging function, Smart Cooling fan
¡ô Comprehensive protection  for overload,short-circuit,Battery Low and else
¡ô Auto-restart and self-testing when AC resume,unattended operation
¡ô USB Communication and Power Manager optional
 Technical Specifications



Model

ZYSW-600TS

ZYSW-800TS

ZYSW-1000TS

ZYSW-1500TS

Maximum Output Power(W)

600VA

800VA

1000VA

1500VA

500W

640W

800W

1200W

Input

Voltage

UPS.mode:145-270¡À5(Vac)

INV.mode:100-290¡À5(Vac)

Frequency

45-65Hz

Output

voltage
(AC mode)

UPS.mode:203-238¡À5(Vac)

INV.mode:150-255¡À5(Vac)

voltage
(Battery mode)

220¡À10(Vac)

Frequency

50Hz ¡À0.5Hz (DC mode)

Output Waveform

Pure sine wave

General Protection

Output Short; Over Voltage; Low-Voltage; Power Utility Short; Low Battery Voltage

DC voltage

12VDC

12VDC

12VDC

12/24VDC

Charge Current

10A/20A for selection

Battery

Battery Type

GEL, lead-acid , Open lead-acid battery

600-1200

12VDC External

12VDC External

12VDC External

12/24VDC External

Grid Charge current

10A/20A for selection

Solar charge controler

Max 50A ( adjustable)

Transfer Time(ms)

Max 10MS

Max 10MS

< 150% overload:No beed, > 150% overload :1beep per second

Alarm

battery low,LCD type beeping every 0.5second,
when overload:UPS beep every 0.5second

Communication Interface

USB communication option.

LCD Display

I/P O/p vac hz, bat % , load %, input range / battery type /charge current/ grid or bat priority selections, solar charge vdc amp ,  fault , over temp

Product size

WxDxH (mm)

290¡Á307¡Á123

290¡Á307¡Á123

290¡Á307¡Á123

290¡Á307¡Á123

Operating temperature

0~40¡æ

Humidity

10%~90% no condensing

CTN, , , , size

WxDxH (mm)

355*380*233

355*380*233

355*380*233

355*380*233

CTN Weight (Gross/Net) (KG)

8/7.3

11.01/10.3

11.65/10.9

13.66/13
