Product Name:

2 in 1 Off Grid Hybrid Solar Inverter G-PSW1KW-6KW

Key Features

◆ Low frequency pure sine wave Grid Hybrid Off Grid Power Inverter

◆ 2 in 1 Off Grid design , Inverter + Power Charger

◆ Selectable Grid power First or Solar Power First (battery power First)

◆ Transfer Time 10ms. Computer will not shut off when Mains off suddenly.

◆ Digital control three stage charger, improve battery life

◆ With Battery Selector for charge of different battery

◆ Power saver Function (Stand by)

◆ High Power Factor 0.9-1

◆ Low idle current to reduce energy consumption

◆ Low DC input, 1-3KW/12V (24/48) VDC, 4-6KW/24V (48) VDC

◆ Big charge current, 35A-75Amp for different mode

◆ Back-Feed Protection

◆ Full protection, short circuit, Overload, over Temp., Battery low/high Protection

◆ Fault recovery

◆ LED display and alarm

◆ Remove control solution

◆ Rs232 communication function optional for LED Type

◆ SNMP Net Agent function optional for LED type

◆ Remove control cable optional

◆ LCD Display is optional

Technical Specifications

Item	Model	G-PSW-1K	G-PSW1.5KW	G-PSW 2K	G-PSW3K	G-PSW4K	G-PSW5K	G-PSW-6K
Capacity	VA / Watts	1KVA/1KW	1.5KVA/1.5KW	2KVA/2KW	3KVA/3KW	4KVA/4KW	5KVA/5KW	6KVA/6KW
Surge rating (10s)		3KVA	4.5KVA	6KVA	9KVA	12KVA	15KVA	18KVA
Efficiency		>95% under AC mode,>88% under DC mode
Power Factor		0.9~1.0，
Input	Normal voltage	220VAC/110V
	220V Voltage range	184-270V+-4%
	110V Voltage range	85-150V+-4%
	Frequency range	50Hz/60HZ -3 +5 Hz (Auto detection)
Output	Voltage (V)	220V/110V+-10%
	Frequency (Hz)	50Hz/60HZ +-0.3 Hz
	Wave form	Pure Sine Wave
	bypass without Battery	yes

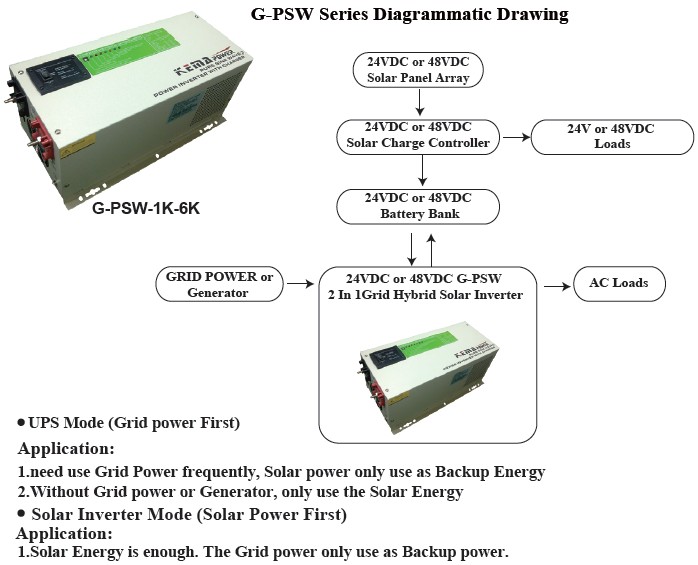

UPS Mode		Grid power first. Battery power ( Solar Power) as backup
Solar inverter Mode		Solar Power First, Grid power as Backup
Transfer Time		less than 10 ms (typical)
Overload capacity	DC Mode(SMPS load)	(110%Load>150% ±10% for 20s
	AC Mode(SMPS load)	by breaker
Protection	Overload	Current limit under DC mode ,Breaker under AC mode
	Battery Protection	Over charge, Over discharge,DC Breaker,Alarm
	Over Temperature	Variable speed fan,LED lighting and alarm
	Back-Feed Protection	yes
	short Circuit.	by breaker.Faul after 10 secs
Battery/Charger	AC input	95-127V, 194(164)--243V
	DC input	12VDC /24VDC or 48VDC,external Battery
	Charge Voltage	for 12VDC system,Boost voltage 14-15.5V selectable for different Battery. The others are multiple
	Charger Current	12-75AMP difference for different mode
	Charge Manage	digital control,Three stage charger
Display	LED	Line On/ Inverter on / Fast Charger / Float charge / Over Temp. trip / Over load trip / Power Saver on
Audible Alarm		Battery Low,Battery High,Over Temp. Over load,Fail,Over charge
Optional		RS232 Communication,SNMP Net Agent,Remote Control
Power Saver		below 25W when enabled.loading checking 2 time/sec.
Working Environment	Temperature	0°C to 40°C
	Noise	60dB max
	Humidity	5% to 95%
Package		Carton	Carton	Carton	Carton	Carton	Carton	Carton
Package Size	WxDxH (mm)	590335320	590335320	590335320	590335320	765340320	765340320	765340320
Gross Weight	KG	17	18	22	26	38	48	48
ATTENTION	the inverter do not build in solar charger controller.
