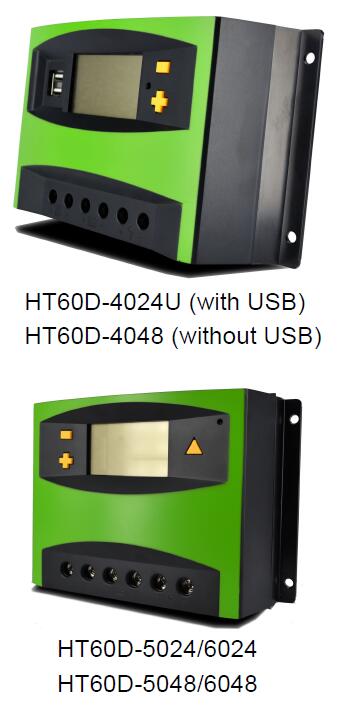

| Product Name: | PWM Solar Charger Controller HT60D Series |
| Key Features |
◆ PWM solar charge controller 12/24V 40/50/60A , 48VDC 40/50/60A
◆ 40A with 2 USB charger, Else None
◆ LCD display generated energy, fault code and battery,PV,Load,charge,discharge details
◆ Bigger terminal , more safety and easy to installation
◆ Selectable Battery type,4 stage Charge,adjustable charge parameter
◆ Temperature compensation Charge and clock function
◆ Load working mode , Normal,Light Control,Light and Double time control
◆ Protection for over charge, over discharge, overload, and short circuit,reverse polarity
◆ Communication with computer by RJ45 option
|  | | Technical Specifications |
|
ITEM |
MODEL |
HT60D-4024U |
HT60D-5024 |
HT60D-6024 |
HT60D-4048 |
HT60D-5048 |
HT60D-6048 |
|
Rated charge current |
40A |
50A |
60A |
40A |
50A |
60A |
|
Rated load current |
40A |
50A |
60A |
40A |
50A |
60A |
|
System voltage |
12/24V AUTO work |
48VDC |
|
Protection |
Over Load |
≥120%, 60s;≥150%,10s,≥180%,0.2s |
|
Short circuit |
Yes |
|
Over voltage |
16V for 12VDC,32V for 24VDC,64V for 48VDC |
|
Low Voltage Disconnection(LVD) |
10.8V for 12VDC, 21.6V for 24VDC,43.2V for 48VDC |
|
Low Voltage Reconnection(LVR) |
12.6V for 12VDC,25.2V for 24VDC,50.4V for 48VDC |
|
Reverse polarity |
protection for solar panel ,battery and DC load. |
|
Reverse current |
Yes.at night |
|
Static current |
≤13mA |
≤15mA |
|
Loop Voltage Drop |
Charge / Discharge |
≤0.17V / ≤0.10V |
≤0.28V /≤0.10V |
≤0.28V /≤0.10V |
≤0.17V /≤0.10V |
≤0.28V /≤0.10V |
≤0.28V /≤0.10V |
|
Charging voltage |
absorption charging |
14.4V for 12VDC,28.8V for 24VDC,57.6V for 48VDC |
|
Float charge |
13.8 for 12VDC,27.6V for 24VDC,55.2V for 48VDC |
|
Open Circuit Voltage of solar panel |
12VDC/24V ≤50V;48V ≤100V |
|
Temperature compensation |
-4mV/Cell/℃ |
|
Charging control mode |
PWM Multi-stage(bulk, absorption,float) |
|
Load Working Mode |
regular mode, Light Control Mode , Light and Time control mode for selection |
|
LCD Display |
LCD for Bat type,VDC,PV output VDC,Amp and Accumulative charge AH.Load Amp and Accumulative discharge AH,Battery charge and discharge value. Controller internal Temp,fault code and S/N. load Time and light control status |
|
USB Charge |
NO |
NO |
NO |
NO |
NO |
NO |
|
Running temperature |
-20 ~ +55 °C |
|
Storage temperature |
-30 ~ +80 °C |
|
Humidity requirements |
10% -90%, no condensation |
|
Installation cable area |
≤25mm2 |
|
Protection class |
IP30 |
|
Case material |
ABS |
|
Product size(mm) |
196*111*54 |
188*125*48.5 |
187*125*56 |
196*111*54 |
188*125*48.5 |
187*125*56 |
|
Product Weight(kg) |
0.407 |
0.562 |
0.701 |
0.407 |
0.564 |
0.703 |
|
Carton size(mm) |
535*415*190 |
|
Carton weight(kg) |
14KG /24PCS |
14KG /24PCS |
17KG /24PCS |
14KG /24PCS |
14KG /24PCS |
17KG /24PCS |
|
Notes |
Model HT**D:D-LCD, 24-12V/24VDC, 48-- 48VDC | | | |
|
|
|
