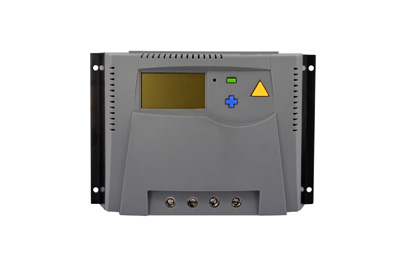

| Product Name: | PWM Solar Charger Controller HS80D Series |
| Key Features |
◆ PWM solar charge controller 12/24V 80A , 48VDC 80A
◆ LCD display generated energy, fault code and battery,PV,Load,charge,discharge details
◆ Bigger terminal , more safety and easy to installation
◆ Selectable Battery type,4 stage Charge,adjustable charge parameter
◆ Temperature compensation Charge and clock function
◆ Load working mode , Normal,Light Control,Light and Double time control
◆ Protection for over charge, over discharge, overload, and short circuit,reverse polarity
◆ Communication with computer by RJ45,RS232 or RS485 option
◆ External Temp. sensor option
|  | | Technical Specifications |
|
ITEM |
MODEL |
HS80D-8024 |
HS80D-8048 |
|
Rated charge current |
80A |
80A |
|
Rated load current |
80A |
80A |
|
System voltage |
12/24V AUTO work |
12/24/48VDC AUTO work |
|
Protection |
Over Load |
≥120%, 60s;≥150%,10s,≥180%,0.2s |
|
Short circuit |
Yes |
|
Over voltage |
15.5V for 12VDC,31V for 24VDC,62V for 48VDC |
|
Low Voltage Disconnection(LVD) |
10.7V for 12VDC, 21.4V for 24VDC,42.8V for 48VDC |
|
Low Voltage Reconnection(LVR) |
12.6V for 12VDC,25.2V for 24VDC,50.4V for 48VDC |
|
Reverse polarity |
protection for solar panel ,battery and DC load. |
|
Reverse current |
Yes.at night |
|
Static current |
≤15mA |
≤18mA |
|
Loop Voltage Drop |
Charge / Discharge |
≤0.17V / ≤ 0.10V |
≤0.25V / ≤ 0.10V |
|
Charging voltage |
Absorption charging |
14.4V for 12VDC,28.8V for 24VDC,57.6V for 48VDC |
|
Float charge |
13.8 for 12VDC,27.6V for 24VDC,55.2V for 48VDC |
|
Equalizing charging |
15.1V for 12VDC,30.2V for 24VDC,60.4V for 48VDC |
|
Open Circuit Voltage of solar panel |
12VDC/24V ≤50V;48V ≤100V |
|
Temperature compensation |
-4mV/Cell/℃ |
|
Charging control mode |
PWM 4-stage(bulk, absorption,float, equalized) |
|
LCD Display |
Bat type,VDC; PV output VDC,last day generate energy KWH and Accumulative KWH; Load W and Accumulative discharge AH and KWH; Battery charge and discharge value. Controller internal Temp,fault code and S/N. load Time and light control status |
|
USB Charge |
NO |
NO |
|
Running temperature |
-20 ~ +55 °C |
|
Storage temperature |
-30 ~ +80 °C |
|
Humidity requirements |
10% -90%, no condensation |
|
Installation cable area |
≤35mm2 |
|
Protection class |
IP30 |
|
Case material |
ABS |
|
Product size(mm) |
187*98.5*49.5 |
|
Product Weight(kg) |
0.40 |
0.42 |
|
Carton size(mm) |
525*490*190mm/12PCS |
|
Carton weight(kg) |
19.5KG/ 12PCS |
|
Notes |
Model HS**D:D-LCD,Without USB | | | |
|
|
|
