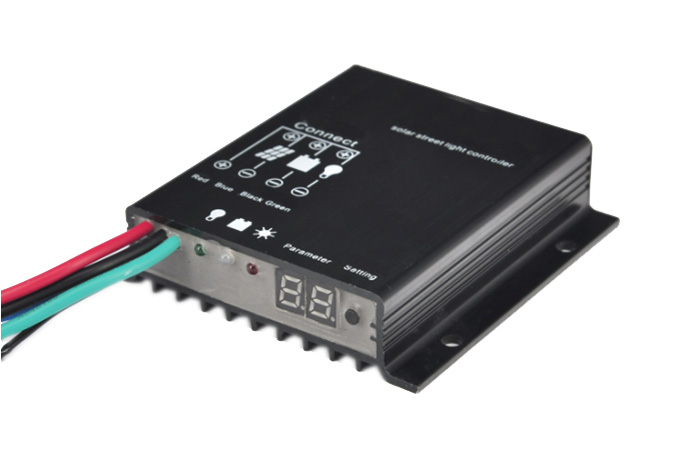

| Product Name: | LED Street Light Controller SKC Series |
| Key Features |
◆ PWM Streel light Controller 12V/24VDC 10A, 20A
◆ Single output, IP68 Waterproof , quakeproof, anticorrosion
◆ 12V or 24VDC automatic recognition
◆ LED and digital display
◆ Normal Mode, Light control , single or double scheduling Mode by manual set
◆ Reverse connection, overload, short circuit and over voltage protection
◆ With temperature compensation function
◆ Full aluminum shell, smaller but better performance |  | | Technical Specifications |
|
Model |
SKC10 |
SKC20 |
|
Input |
Battery voltage |
12V/24V automatic recognition |
|
Solar panel voltage |
Max 55V for controller safety |
|
Output |
Rate Current |
10A |
20A |
|
Boost charge VDC |
14.6VDC |
29.2VDC |
|
Equalization Charge VDC |
14.4VDC |
28.8VDC |
|
Float charge VDC |
13.6VDC |
27.2VDC |
|
Recharge VDC |
13.2VDC |
26.4VDC |
|
Protection |
PV High voltage disconnection |
17 |
34 |
|
Battery Low voltage disconnect |
11 |
22 |
|
Low voltage resumption |
12.6V |
25.2 |
|
Overload protection |
125%,OFF after 1mins ,150% , OFF after 5 secs, |
|
Solar panel reverse protection |
yes |
yes |
|
Battery reverse protection |
yes |
yes |
|
Short circuit protection |
yes |
yes |
|
Adverse Current protection |
yes |
yes |
|
Display |
LED |
charging,Over Voltage,PV No input, Overload ,short Circuit, battery capacity, Bat low |
|
Digital |
use to manual adjust the parameter |
|
Mode |
Pure light control, Light control + single scheduling Mode, Light control +double scheduling Mode,24hours working mode |
|
Others |
Standby loss |
≤6mA |
≤6mA |
|
Charging control voltage and temperature compensation |
-4mv/cell/℃ |
|
Light control identification voltage |
Night 2.5V,Daytime:3.5V ,x2/24V can be set by remote control |
|
Light control identification time |
15sec |
|
Working temperature range |
-30℃~60℃ |
|
Protection grade |
IP68 |
|
Product size (MM) |
82*80*20.5mm |
82*80*20.5mm |
|
Net Weight (KG) |
0.23KG |
0.28KG |
|
PCS/CTN |
75 |
75 |
|
CTN size |
420*295*240mm/75PCS |
420*295*240mm/75PCS |
|
CTN Weight (KG) |
17.5KG |
17.5KG |
| | |
|
|
|
