Product Name:

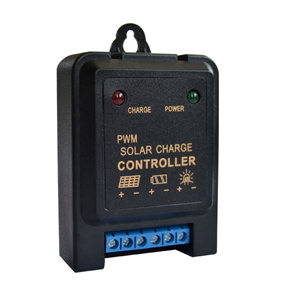

PWM Solar Charger Controller JC Series

Key Features

◆ PWM mini solar charge controller

◆ Integrate solar power charge controller and street light controller design into one

◆ The controller has light control and time control function (street lamp type)

◆ Overcharge, discharge, over current, short circuit, reverse polarity protection

◆ Three-step PWM charge

◆ Controller will be damaged, if both of solar panel and battery connection in reverse connection

Technical Specifications

Model	JC0603	JC0605	JC1203	JC1205
Rated Voltage	6VDC	6VDC	12VDC	12VDC
Strong charging pressure	7.4VDC	7.4VDC	14.8VDC	14.8VDC
Equilibrium charging	7.25VDC	7.25VDC	14.5VDC	14.5VDC
Float charging pressure	6.85VDC	6.85VDC	13.7VDC	13.7VDC
Under voltage	5.4VDC	5.4VDC	10.8VDC	10.8VDC
Under recover voltage	6.5VDC	6.5VDC	13VDC	13VDC
Non –load current	≤6mA
Charging circuit voltage drop	≤0.2V
Discharge circuit voltage drop	≤0.1V
Maximum charging current	3A	5A	3A	5A
Maximum load current	3A	5A	3A	5A
Controller protection	overcharge, over-discharge, over-current, short-circuit, reverse polarity protection
Charging Mode	PWM Charging Mode
Using elevation	≤5500m(more than 2000m should be used in lower power
Working temperature	－20℃～55℃
Gross Weight (KG)	0.05KG
Net Weight (KG)	0.035KG
*Product size(LengthWidthHeight)*	79.5mm52mm21.5mm
Protection level	IP22
