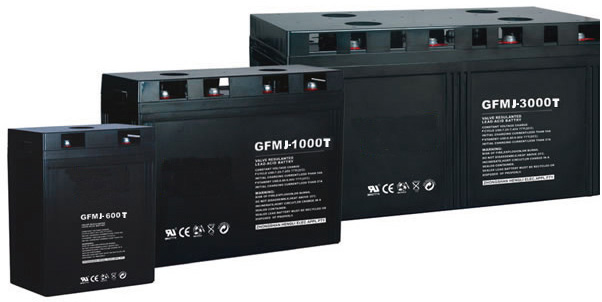

Product Name: Flat Plate Gel Battery 2V GFMJ-T Series
 Key Features

Flat Plate GEL battery
Absorbent Glass Mat(AGM) technology
Maintenance-free operation,Valve-regulated Lead Acid(VRLA) battery.
Reliable seal performance, no acid spillage, recombination efficiency reach 99.9%
Self discharge rate :< 2% per month at 77oF(25)
15+ years design life under floating application and cycle life is above 1200 at 80% DOD under temperature 25.
Recommended float charge voltage for 2V battery: 2.25Vpc at 77oF(25)
Shelf life: 6 months at 68oF(20)
Flexible connectors and convenient installation

Application:
Solar power and wind power energy store
Telecommunications
Uninterruptible power supply (UPS)
military and broadcast and television system
The other integrated stored energy system

 Technical Specifications

Battery Constructionn

Component

Positive plate

Negative plate

Container

Cover

Safety valve

Terminal

Separator

Electrolyte

Raw material

Lead dioxide

Lead

ABS

ABS

Rubber

Copper

Fiberglass

Sulfuric acid

Technical Specifications

Model (AGM)

Rated Capacity(Ah)

Number of cell

Length(mm)

Width (mm)

Height (mm)

Total Height (mm)

Weight(Kg)

GFMJ-100T

100

1

171

72

205

210

7.2

GFMJ-120T

120

1

171

72

205

210

7.5

GFMJ-150T

150

1

171

102

205

210

8.2

GFMJ-200T

200

1

173

111

329

365

14

GFMJ-250T

250

1

173

111

329

365

15.5

GFMJ-300T

300

1

171

151

330

365

20

GFMJ-400T

400

1

211

176

329

367

27

GFMJ-500T

500

1

242

172

331

366

32

GFMJ-600T

600

1

301

175

331

366

39.2

GFMJ-800T

800

1

410

175

330

367

55

GFMJ-1000T

1000

1

475

175

328

365

65

GFMJ-1200T

1200

1

475

175

330

367

76.5

GFMJ-1500T

1500

1

401

351

342

378

102

GFMJ-1800T

1800

1

491

351

344

383

130

GFMJ-2000T

2000

1

491

351

344

383

130

GFMJ-2500T

2500

1

712

353

344

382

178

GFMJ-3000T

3000

1

712

353

344

382

200
