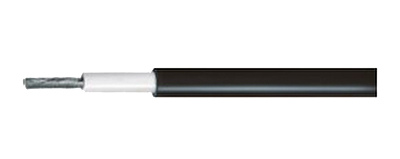

Product Name: TUV Single Core PV Cable 1.5/2.5/4/6/10/16 upto 35
 Key Features

◆ TUV Single Core PV Cable 1.5/2.5/4/6/10/16 upto 35 sqmm

◆ Rated Voltage 1000VDC or 1800VDC

◆Photovoltaic Power Cables,halogen free,flame retaedant

◆Double insulation,electron-beam cross-linked cables for Photo-caltaic power applications.

◆Electron-beam cross-linking compounds

◆UV, ozone and hydrolysis  resistant

◆High temperature resistant,the  material do not melt or flow

◆Very long service life >25 years at 90℃

◆Compatible to all popular connectors

◆Flexible and space-saving installation



Conductor    Tinned fine copper strands,according to VDE0295/IEC60228,class5

Insulation     Polyolefin copolymer electron-beam cross-linked

Jacket           Polyolefin copolymer electrons-beam cross-linked,Uv and ozone resistant

 Technical Specifications

Nominal voltage                                 U0/U=600/1000V AC,1000/1800V DC

Test valtage                                         65000v,50Hz,50min

Max.conductor temperature              -40℃ up to +120℃

Ambient temperature                         -40℃ up to+90℃

Max.Short circuit temperature           280℃

Bending radius                                   fixed installation>4 ×Φ;Occasinally moved>5 ×Φ

Material properties/Standards

Fire performance                           IEC 60332-1

Smoke emission                           IEC 61034；EN 50268-2

Low fire load                                   DIN 51900

Approvals                                        VDE-AR-E 2283-4 PV1-F

Application standards                  UNE 21123；UNE 20.460-5-52;UTEC 32-502





Mode

Construction       n×mm²

Conductor Construction n/m

Conductor Φ    mm

Outer Φ    mm

Resistance max.  Ω/km

Carrying capacity  A

Approx Weight  kg/km

TUV1*1.5

1×1.5

30/0.25±0.02

1.58

4.9

13.7

30

30

TUV1*2.5

1×2.5

49/0.25±0.02

2

5.5

8.21

41

40

TUV1*4

1×4

56/0.30±0.02

2.55

5.5

5.09

55

53

TUV1*6

1×6

84/0.30±0.02

2.55

7.1

3.39

70

72

TUV1*10

1×10

145/0.30±0.02

4.1

8.5

1.95

98

120

TUV1*16

1×16

126/0.40±0.02

5.7

10

1.24

132

198

TUV1*25

1×25

196/0.40±0.02

7.1

11.2

0.795

176

290

TUV1*35

1×35

276/0.40±0.02

8.5

12.3

0.565

218

380
