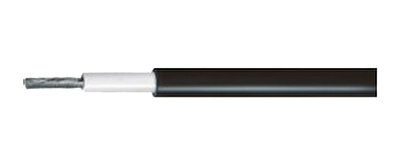

Product Name: UL Single Core PV Cable 18-4/0 AWG
 Key Features

◆ UL Standard Single Core PV Cable  18-4/0 AWG

◆ Rated Voltage 1000V or 1800VDC,

◆ Electron-beam cross-linking compounds

◆ UV ozone and hydrolysis resistant

◆Double insulation, electron-beam cross-linking cables for Photo-voltaic power applications

◆ High temperature resistant, the material do not melt or flow

◆ Good cold flexibility

◆ Very long service life>25 years at 90 ℃

◆ Compatible to all popular connectors



Conductor   Tinned fine copper or Bare Copper or Copper-clad-alu-minum strands according to VDE0295/IEC60228,class5

Insulation    Polyolefin copolymer electron-beam cross-linked

Jacket           Polyolefin copolymer electrons-beam cross-linked,Uv and ozone resistant

 Technical Specifications

Nominal voltage                                 U0/U=600/1000V AC,1000/1800V DC

Test voltage                                        6500V,50Hz,5 min

Max.conductor temperatur                -40℃ up to+120℃

Ambient temperature                        -40℃ up to +90℃

Max.Short circuit temperature          280℃

Bending radius                                  fixed installation>4×Φ;Occasionally moved> 5×Φ



Material properties/Standards

Fire performance                           IEC 60332-1;UL1581 1067/VW-1

Smoke emission                           IEC 61034;EN 50268-2

Low fire load                                   DIN 51900

Approvals                                        UL4703 PV Wire;UL854 USE-2

Application standards                  NEC 2008 / UL PV Wire;UL854 USE - 2



Mode

Construction AWG

Conductor Nom.Area mm2

Conductor Structure n/mm

Outer Φ 600V  mm

Outer Φ 1000v & 2000V mm

Resistance max. Ω/km

Approx Weiht 600V kg/km

Approx Weight 1000V & 2000v kg/km

UL18

18

0.823

16/0.254

4.35

5.15

23.2

26

33

UL16

16

1.31

26/0.254

4.7

5.6

14.6

33

40

UL14

14

2.08

41/0.254

5.1

5.9

8.96

42

50

UL12

12

3.31

48/0.30

5.6

6.4

5.64

57

66

UL10

10

5.261

65/0.32

6.5

7.3

3.546

80

90

UL8

8

8.367

65/0.40

7.7

8.5

2.23

120

132

UL6

6

13.3

105/0.40

9.5

10.2

1.403

185

198

UL4

4

21.15

168/0.40

10.9

11.6

0.882

270

284

UL2

2

33.62

266/0.40

12.7

13.4

0.5548

396

415

UL1

1

42.41

215/0.50

15.6

16.1

0.4398

537

552

UL1/0

1/0

53.49

273/0.50

16.8

17.3

0.3487

654

700

UL2/0

2/0

67.43

342/0.50

18

18.5

0.2766

791

810

UL3/0

3/0

87.9

448/0.50

19.6

20.1

0.2194

998

1020

UL4/0

4/0

105.4

532/0.50

21

21.5

0.1722

1164

1190
