| Product Name: | Solar LED Street light system-DYBH-S |

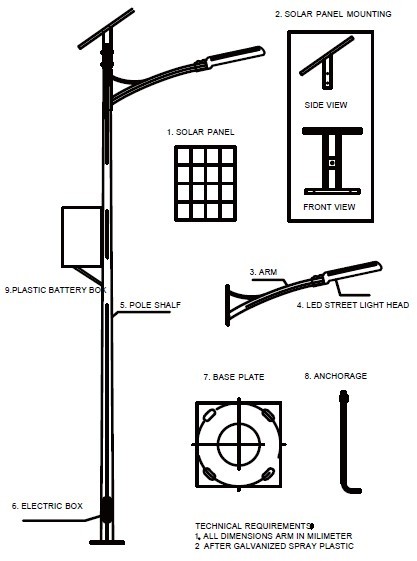

| Key Features | ◆ The solar LED street light system included Lamp head( light source),Pole and light Arm,Battery Box,Solar Panel Mounting,Solar Panel,Solar Street light charge Controller,Battery and the other,Accessories
◆ High power LED light source
◆ Energy-saving,easy installation
◆ Big heat sink to keep under low operation temperature to extend system life
◆ Highest efficiency PV panel used watertight terminal box
◆ PWM charge controller with time and light control and full protection function
◆ Deep cycle, long life and Maintenance Free GEL battery
◆ The steel parts all are electrostatic spraying of polyester Powder after hot dip galvanizing |  | | Technical Specifications |
|
ITEM |
System Model |
DYB020H-S |
DYB030H-S |
DYB040H-S |
DYB050H-S |
DYB060H-S |
|
System parameter |
Power Capacity (W) |
20W |
30W |
40W |
50W |
60W |
|
System DC voltage |
12VDC |
12VDC |
12VDC |
12VDC |
24VDC |
|
Light source |
High Power LED |
|
Luminous Flux (LM) |
2200LM |
3300LM |
4400LM |
5500LM |
6600LM |
|
Central illuminans (LX) |
4M≥22lux 6M≥12lux |
4M≥32lux 6M≥16lux |
6M≥28lx 8M≥18lx |
7M≥28lux 8M≥20lux |
6M≥40Lux 8M≥22Lux |
|
Design recharge time |
HRS/Day |
6 |
6 |
6 |
6 |
6 |
|
Design Running time |
HRS/Day |
10 |
10 |
10 |
10 |
10 |
|
Design Backup Days |
Days |
Max 3 days under cloudy or rainy days |
|
ATTENTION |
if the above design condition is different, the following parts will be change too. Pls confirm before place order. |
|
Parts of the system |
LED stree light head |
model |
DYBH20W |
DYBH30W |
DYBH40W |
DYBH50W |
DYBH60W |
|
Luminous Flux (LM) |
2200LM |
3300LM |
4400LM |
5500LM |
6600LM |
|
Product size |
DYB(L*W*H=606*250*128mm) |
|
Solar Charge Controller |
MODEL |
HN0512R |
HN1024R |
|
Current/VDC |
5AMP/12VDC,ligh and time control |
10AMP/24VDC,ligh and time control |
|
Matched pole Height |
3-6M |
3-7M |
4-7M |
5-8M |
6-10M |
|
Advice Pole and Arm |
Height |
3.5M isodiametric |
6M,subulate |
6M,subulate |
8M,subulate |
8M,subulate |
|
Dia. |
Top 76mm, Bottom140mm |
Top 65mm, Bottom 130mm |
Top 65mm, Bottom 130mm |
Top 75mm, Bottom 165mm |
Top 75mm, Bottom 165mm |
|
Thickness |
2.5mm |
3mm |
3mm |
3.5mm |
3.5mm |
|
Base Place |
280*280*10mm |
280*280*12mm |
280*280*12mm |
320*320*14mm |
320*320*14mm |
|
material |
Q235,hot dip galvanizing. electrostatic spraying agan is option |
|
Arm |
Dia 48mm, length 500mm |
Dia 60mm, length 1000mm |
Dia 60mm, length 1000mm |
Dia 60mm, length 1200mm |
Dia 60mm, length 1200mm |
|
Solar Panel Mounting (mm) |
yes. Iron, hot dip galvanized. electrostatic spraying agan is option |
|
Gel battery for 3 days |
Model |
GEL65-12 |
GEL120-12-113 |
GEL150-12 |
GEL100-12D01 |
GEL100-12D01 |
|
PCS/Capacity |
1*65AH/12VDC |
1*120AH/12VDC |
1*150AH/12VDC |
2*100AH/12VDC |
2*100AH/12VDC |
|
product Size(mm)/KG |
350*167*178/21kg |
406*174*238/36kg |
484*171*241/45kg |
330*173*240/26kg |
330*173*240/26kg |
|
Plastic Battery box |
Model |
PBX80 |
PBX120 |
PBX200 |
PBX120-24 |
PBX120-24 |
|
inside Size(mm) |
360*180*260 |
420*195*245 |
540*275*260 |
420*370*245 |
420*370*245 |
|
the others |
modified strengthen plastics,One-time injection moulding,to Put Under Ground, IP65 |
|
Solar panel |
Mode |
GYP60-36 |
GYP85-36 |
GYP115-36 |
GYP70-36 |
GYP85-36 |
|
PCS/Capacity |
1*60WP/17.5VMP |
1*85WP/17.8VMP |
1*115WP/18VMP |
2*70WP/17.5VMP |
2*85WP/17.8VMP |
|
product Size(mm)/KG |
780*675*25/6.2kg |
995*668*35/10kg |
1245*668*35/11kg |
780*675*25/6.2kg |
995*668*35/10kg |
|
Solar Panel bracket (mm) |
yes. Iron, hot dip galvanized |
|
Accessories |
Cable,Nut , Bolt and installtion base and so on |
|
Option |
Iron Bat box |
yes To replace the plastic bat box, |
|
electrostatic spraying |
yes. The all iron or steel parts hot dip galvanized is must. electrostatic spraying agan is option |
|
Grid Hybrid Solution |
yes. Replace the Normal Solar Controller by Grid Hybrid solar street lamp Controller |
|
|
|
|
|
|
|
|
|
| | |
|
|
|
