| Product Name: | Solar LED Street light system DYCH-S |
| Key Features | |

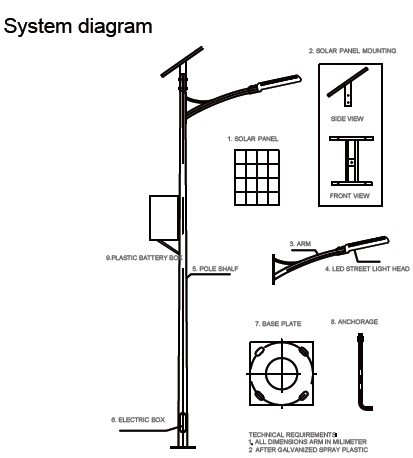

◆ The solar LED street light system included Lamp head( light source),Pole and light Arm,Battery Box,Solar Panel Mounting,Solar Panel,Solar Street light charge Controller,Battery and the other,Accessories
◆ High power LED light source
◆ Energy-saving,easy installation
◆ Big heat sink to keep under low operation temperature to extend system life
◆ Highest efficiency PV panel used watertight terminal box
◆ PWM charge controller with time and light control and full protection function
◆ Deep cycle, long life and Maintenance Free GEL battery
◆ The steel parts all are electrostatic spraying of polyester Powder after hot dip galvanizing |  | | Technical Specifications |
|
ITEM |
System Model |
DYC030H-S |
DYC040H-S |
DYC050H-S |
DYC060H-S |
DYC080H-S |
|
System parameter |
Power Capacity (W) |
30W |
40W |
50W |
60W |
80W |
|
System DC voltage |
12VDC |
12VDC |
12VDC |
24VDC |
24VDC |
|
Light source |
High Power LED |
|
Luminous Flux (LM) |
3300LM |
4400LM |
5500LM |
6600LM |
8800LM |
|
Central illuminans (LX) |
4M≥35Lux 6M≥18Lux |
7M≥18Lux 8M≥13Lux |
7M≥28Lux 8M≥20Lux |
7M≥32Lux 8M≥24Lux |
6M≥45Lux 8M≥26Lux 10M≥17Lux |
|
Design recharge time |
HRS/Day |
6 |
6 |
6 |
6 |
6 |
|
Design Running time |
HRS/Day |
10 |
10 |
10 |
10 |
10 |
|
Design Backup Days |
Days |
Max 3 days under cloudy or rainy days |
|
ATTENTION |
if the above design condition is different, the following parts will be change too. Pls confirm before place order. |
|
Parts of the system |
LED stree light head |
<, /SPAN>model |
DYCH30W |
DYCH40W |
DYCH50W |
DYCH60W |
DYCH80W |
|
Luminous Flux (LM) |
3300LM |
4400LM |
5500LM |
6600LM |
8800LM |
|
Product size |
DYC(L*W*H=680*270*130mm) |
|
Solar Charge Controller |
MODEL |
HN1024R |
|
Current/VDC |
10AMP/24VDC,ligh and time control |
|
Matched pole Height |
3-7M |
7-8M |
5-8M |
5-8M |
6-10M |
|
Advice Pole and Arm |
Height |
6M,subulate |
6M,subulate |
8M,subulate |
8M,subulate |
10M,subulate |
|
Dia. |
Top 65mm, Bottom 130mm |
Top 65mm, Bottom 130mm |
Top 75mm, Bottom 165mm |
Top 75mm, Bottom 165mm |
Top 85mm, Bottom 195mm |
|
Thickness |
3mm |
3mm |
3.5mm |
3.5mm |
4mm |
|
Base Place |
280*280*12mm |
280*280*12mm |
320*320*14mm |
320*320*14mm |
400*400*16mm |
|
material |
Q235,hot dip galvanizing. electrostatic spraying agan is option |
|
Arm |
Dia 60mm, length 1000mm |
Dia 60mm, length 1000mm |
Dia 60mm, length 1200mm |
Dia 60mm, length 1200mm |
Dia 60mm, length 1500mm |
|
Solar Panel Mounting (mm) |
yes. Iron, hot dip galvanized. electrostatic spraying agan is option |
|
Gel battery for 3 days |
Model |
GEL120-12-113 |
GEL150-12 |
GEL100-12D01 |
GEL100-12D01 |
GEL150-12 |
|
PCS/Capacity |
1*120AH/12VDC |
1*150AH/12VDC |
2*100AH/12VDC |
2*100AH/12VDC |
2*150AH/12VDC |
|
product Size(mm)/KG |
406*174*238/36kg |
484*171*241/45kg |
330*173*240/26kg |
330*173*240/26kg |
484*171*241/45kg |
|
Plastic Battery box |
Model |
PBX120 |
PBX200 |
PBX120-24 |
PBX120-24 |
PBX150-24 |
|
inside Size (mm) |
420*195*245 |
540*275*260 |
420*370*245 |
420*370*245 |
495*365*260 |
|
the others |
modified strengthen plastics,One-time injection moulding,to Put Under Ground, IP65 |
|
Solar panel |
Model |
GYP85-36 |
GYP115-36 |
GYP70-36 |
GYP85-36 |
GYP115-36 |
|
PCS/Capacity |
1*85WP/17.8VMP |
1*115WP/18VMP |
2*70WP/17.5VMP |
2*85WP/17.8VMP |
2*115WP/18VMP |
|
product Size(mm)/KG |
995*668*35/10kg |
1245*668*35/11kg |
780*675*25/6.2kg |
995*668*35/10kg |
1245*668*35/11kg |
|
Solar Panel bracket (mm) |
yes. Iron, hot dip galvanized |
|
Accessories |
Cable,Nut , Bolt and installtion base and so on |
|
Option |
Iron Bat box |
yes To replace the plastic bat box, |
|
electrostatic spraying |
yes. The all iron or steel parts hot dip galvanized is must. electrostatic spraying agan is option |
|
Grid Hybrid Solution |
yes. Replace the Normal Solar Controller by Grid Hybrid solar street lamp Controller |
| | |
|
|
|
