Product Name: Solar LED Street light system DYDH-S
 Key Features

◆The solar LED street light system included Lamp head( light source),Pole and light Arm,Battery Box,Solar Panel Mounting,Solar Panel,Solar Street light charge Controller,Battery and the other,Accessories

◆High power LED light source

◆Energy-saving,easy installation

◆Big heat sink to keep under low operation temperature to extend system life

◆Highest efficiency PV panel used watertight terminal box

◆PWM charge controller with time and light control and full protection function

 ◆Deep cycle, long life and Maintenance Free GEL battery

 ◆The steel parts all are electrostatic spraying of polyester Powder after hot dip galvanizing

 Technical Specifications

ITEM

System Model

DYD090H-S

DYD120H-S

System parameter

Power Capacity (W)

90W

120W

System DC voltage

24VDC

24VDC

Light source

High Power LED

Luminous Flux (LM)

9900LM

13200LM

Central illuminans (LX)

10M≥20Lux

 10M≥25Lux

Design  recharge time

HRS/Day

6

6

Design Running time

HRS/Day

10

10

Design Backup Days

Days

Max 3 days under cloudy or rainy days

ATTENTION

if the above design condition is different, the following parts will be change too. Pls confirm before place order.

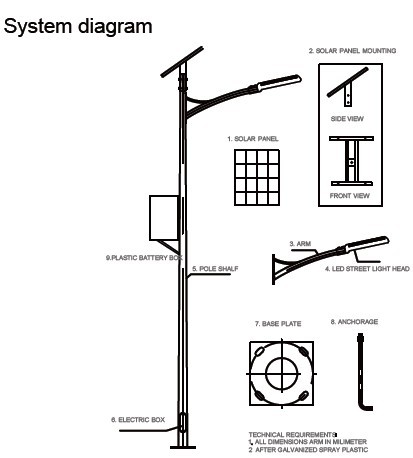

Parts of the system

LED stree light head

 model

DYDH90W

DYDH120W

Luminous Flux (LM)

9900

13200

Product size

DYD=(L*W*H=780*325*205mm)

Solar Charge Controller

MODEL

HN1024R

HN1524R

Current/VDC

10AMP/24VDC,ligh and time control

15AMP/24VDC,ligh and time control

Matched pole Height

8-12M

8-12M

Advice Pole and Arm

Height

10M,subulate

12M,subulate

Dia.

Top 85mm, Bottom 195mm

Top 100mm, Bottom 230mm

Thickness

4mm

4.5mm

Base Place

400*400*16mm

450*450*20mm

material

Q235,hot dip galvanizing. electrostatic spraying agan is option

Arm

Dia 60mm, length 1500mm

Dia 60mm, length 1500mm

Solar Panel Mounting (mm)

yes. Iron, hot dip galvanized. electrostatic spraying agan is option

Gel battery for 3 days

Model

GEL150-12

GEL200-12

PCS/Capacity

2*150AH/12VDC

2*200AH/12VDC

product Size(mm)/KG

484*171*241/45kg

520*240*244/63kg

Plastic Battery box

Model

PBX150-24V

PBX200-24V

inside Size (mm)

495*365*260

540*540*260

the others

modified strengthen plastics,One-time injection moulding,to Put Under Ground, IP65

Solar panel

Model

GYP130-36

GYM170-72

PCS/Capacity

2*130WP/17.9VMP

2*170WP/35.6VMP

product Size(mm)/KG

1480*675*30/12kg

1580*808*35/15.5kg

Solar Panel  bracket (mm)

yes. Iron, hot dip galvanized

Accessories

Cable,Nut , Bolt and installtion base and so on

Option

Iron Bat box

yes To replace the plastic bat box,

electrostatic spraying

yes. The all iron or steel parts hot dip galvanized is must. electrostatic spraying agan is option

Grid Hybrid Solution

yes. Replace the Normal Solar Controller by Grid Hybrid solar street lamp Controller
