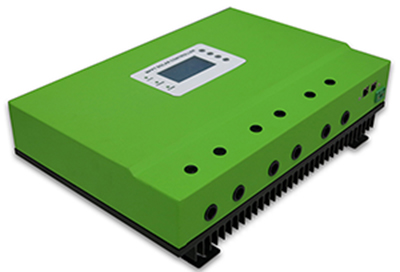

| Product Name: | Solar Charger Controller MPPT48Z-M series |
| Key Features | ＃ LCD MPPT solar charge controller 12/24/48VDC 80A, 100AMP
＃ Max PV input voltage 150VDC
＃ Conversion efficiency 99%, With Load port
＃ RS232 and Lan Communication
＃ Three Stages charging
＃ Selectable battery type and User can Defined charge voltage too
＃ Selectable different Display work mode
＃ LCD+LED info for PV, battery , Charge and discharge,setup ＃ With Temperature Compensation, Memory function |  | | Technical Specifications |
|
Item |
Model |
MPPT48Z-80M |
MPPT48Z-100MI |
|
Output |
Rated Charge Voltage |
DC12V/24V/36V/48V Automatic recognition |
|
Output VDC Precision |
＋＼1.5% |
|
Rated Charge Current |
80A |
100A |
|
Load Rated output Current |
80A |
100A |
|
Current-limiting Protection |
85A |
105A |
|
Over Charge Protection |
DC 9V~15V for 12VDC , DC18V~28V for 24VDC, DC32V~40V for 36VDC,DC42V~60V for 48VDC |
|
Selectable battery |
Sealed lead acid, vented Gel, NiCd.Other types of the batteries also can be defined |
|
Temperature Compensation |
14.2V-(The highest temperature-25≧)*0.3 |
|
Input |
MPPT Range |
16V~DC150V For 12VDC ,30V~DC150V For 24VDC,45V~DC150V For 36VD,60V~DC150V For 48VDC |
|
System Max. PV Power |
12V |
960W |
1200W |
|
24V |
1920W |
2400W |
|
36V |
2880W |
3600W |
|
48V |
3840W |
4800W |
|
Low Voltage Input Protection |
DC22V for 12V system,DC34V for 24V ,DC50V for 36V ,DC65V for 48V |
|
Low Voltage Input Recovery |
DC145V for 12V/24V/36V/48V system |
|
Max DC Voltage |
150VDC |
|
Overvoltage Protection |
150VDC |
|
Overvoltage Recovery |
DC145V |
|
Conversion Efficiency |
−96.5%,＋99% |
|
Display |
LCD display |
PV VDC, Charge Amp WH , BAT VDC % , Load Amp W, Charging Mode,Time , setup , Fault info |
|
LED display |
3 LEDs:Fault,charge,power |
|
Communication |
With RS232 COM Communication and LAN port IP and TCP communication |
|
Discharge Mode |
Double-time control,ON / OFF mode,PV voltage control,PV voltage / time delay control |
|
Protection |
Input Low Voltage/Overvoltage/ Polarity Reversal/Protection |
|
Output Overvoltage /Polarity ReversalProtection |
|
Short-circuit Protection,Recover after eliminating |
|
Over Temperature Protection,95≧ |
|
Physical |
Product size |
D420*W280*H102 mm |
|
Packing size |
D500*W360*H195 mm |
|
G.N/N.G(kg) |
8.5/7.1 |
|
IP Grade |
IP50 |
| | |
|
|
|
