| Product Name: | SL018 Series |
| Key Features | |

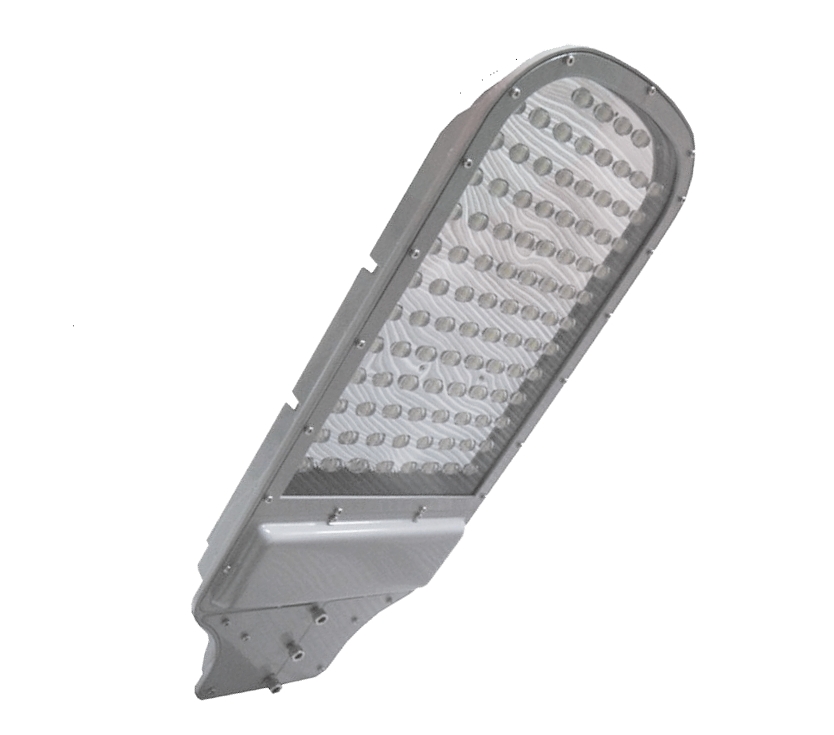

◆High bright LED,LED Street Light,
◆SL018 Series, 30w, 40w, 50w, 60w, 80w, 100w, 120w, 150w, 180w
◆Input 85-265VAC or 12/24VDC
◆Light body: Die-casting aluminum housing
◆Mask: high transmittance, high quality tempered glass,
◆Driver with CE, silicone perfusion, waterproof heat stronger,
◆Radiator: Integration aluminum + convection design,
◆Power cord: boSL industrial grade copper wire,
◆Waterproof: IP65
◆Whole light luminous efficacy ≥85lm/w,
◆Lifespan >50,000 hours
◆CCT 2700K-7000K
◆Great illuminating angle: 120°
◆Aging test at least 12 hours for all LED light source,driver before shipment.
◆Warranty 3 years |  | | Technical Specifications |
|
Model |
SL-018-30 |
SL-018-40 |
SL-018-50 |
SL-018-60 |
SL-018-80 |
SL-018-100 |
SL-018-120 |
SL-018-150 |
|
POWER |
30W |
40W |
50W |
60W |
80W |
100W |
120W |
150W |
|
DRIVER |
Standard CE driver |
Standard CE driver |
Standard CE driver |
Standard CE driver |
Standard CE driver |
Standard CE driver |
Standard CE driver |
Standard CE driver |
|
LED CHIP |
Epistar chip |
Epistar chip |
Epistar chip |
Epistar chip |
Epistar chip |
Epistar chip |
Epistar chip |
Epistar chip |
|
LED BEAD |
30*1W |
40*1W |
50*1W |
60*1W |
80*1W |
100*1W |
120*1W |
150*1W |
|
CASING MATERIAL |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
|
ANGLE REGULATION |
No |
No |
No |
No |
No |
No |
No |
No |
|
VOLTAGE |
AC95-240V,
12/24VDC |
AC95-240V,
12/24VDC |
AC95-240V,
12/24VDC |
AC95-240V,
12/24VDC |
AC95-240V,
12/24VDC |
AC95-240V,
12/24VDC |
AC95-240V,
12/24VDC |
AC95-240V, |
|
FREQUENCY |
50/60HZ |
50/60HZ |
50/60HZ |
50/60HZ |
50/60HZ |
50/60HZ |
50/60HZ |
50/60HZ |
|
POWER FACTOR |
>0.9 |
>0.9 |
>0.9 |
>0.9 |
>0.9 |
>0.9 |
>0.9 |
>0.9 |
|
LUMINOUS FLUX |
85-90 |
85-90 |
85-90 |
85-90 |
85-90 |
85-90 |
85-90 |
85-90 |
|
CORRELATED COLOR TEMP.(CCT) |
2700-7000K |
2700-7000K |
2700-7000K |
2700-7000K |
2700-7000K |
2700-7000K |
2700-7000K |
2700-7000K |
|
COLOR RENDERING INDEX (CRI) |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
|
BEAN ANGLE |
>120°
peanuts lens
planar reflecter |
>120°
peanuts lens
planar reflecter |
>120°
peanuts lens
planar reflecter |
>120°
peanuts lens
planar reflecter |
>120°
peanuts lens
planar reflecter |
>120°
peanuts lens
planar reflecter |
>120°
peanuts lens
planar reflecter |
>120°
peanuts lens
planar reflecter |
|
PROTECTION GRADE |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
|
LIFE SPAN |
＞50000h |
＞50000h |
＞50000h |
＞50000h |
＞50000h |
＞50000h |
＞50000h |
＞50000h |
|
WARRANTY |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
|
AMBIENT HUMIDITY |
<95% |
<95% |
<95% |
<95% |
<95% |
<95% |
<95% |
<95% |
|
AMBIENT TEMP. |
–35~60℃ |
–35~60℃ |
–35~60℃ |
–35~60℃ |
–35~60℃ |
–35~60℃ |
–35~60℃ |
–35~60℃ |
|
Shell color |
silver grey,
white,black |
silver grey,
white,black |
silver grey,
white,black |
silver grey,
white,black |
silver grey,
white,black |
silver grey,
white,black |
silver grey,
white,black |
silver grey,
white,black |
|
PCS/CARTON |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
|
PRODUCT SIZE (mm) |
480*200*70 |
480*200*70 |
575*242*60 |
575*242*60 |
605*282*60 |
670*302*60 |
783*350*71 |
783*350*71 |
|
PACKING SIZE (mm) |
490*210*100 |
490*210*100 |
585*255*100 |
585*255*100 |
610*295*100 |
610*295*100 |
800*370*100 |
800*370*100 |
|
N.W.(kg) |
3.65 |
3.65 |
7.7 |
7.7 |
8.8 |
8.8 |
9.2 |
9.7 |
|
G.W.(kg) |
3.95 |
3.95 |
8 |
8 |
9.1 |
9.1 |
9.5 |
10 |
|
REMARK |
1.For the LED Street light, still need Pole, PV Panel , PV mounting,Solar Charge Controller, Solar Battery and Battery Box. pls inquire while need. |
|
2.CCT: Warm white(WW) 2700-3500K;Natural white(NW)4000-4500K;Cool white(CW) 6000-7000K | | | |
|
|
|
