Model |
SWH100P |
SWH120P |
SWH150P |
SWH180P |
SWH200P |
SWH240P |
SWH250P |
SWH300P |
|
Tank capacity |
100L |
120L |
150L |
180L |
200L |
240L |
250L |
300L |
|
Dimensions of tank |
Φ460 *1000 |
Φ460 *1150 |
Φ460 *1375 |
Φ460 *1600 |
Φ460 *1750 |
Φ460 *2050 |
Φ460 *2125 |
Φ460 *2500 |
|
Outside Tank Material |
Stainless steel202-BA Thickness:0.4mm |
|
Inside Tank Material |
Food grade stainless steel(SUS304-2B),Welded by Argon arc.thickness 1.2mm |
|
Heat Insulation |
Polyurethane(Bayer,Germany), 55mm thickness,no less than 36kg/m3 |
|

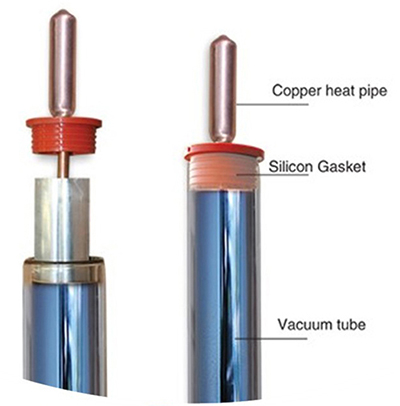

Vacuum Tube |
high borosilicate 3.3 glass. Efficiency:91%-94%. three-target tubes, top efficiency |
|
Bracket |
Stainless steel with plastic spraying. Angle: 27°--45Degree. |
|
Absorber |
Material |
Copper oxide, black nickel, black chromium, black zinc, black copper |
|
Coating |
Cu/SS/Alu |
|
Color |
As per customer's request |
|
Thickness |
0.15mm |
|
Absorptivity |
α≥0.93（AM1.5) |
|
Emittance |
ε≤7%（80±5℃） |
|

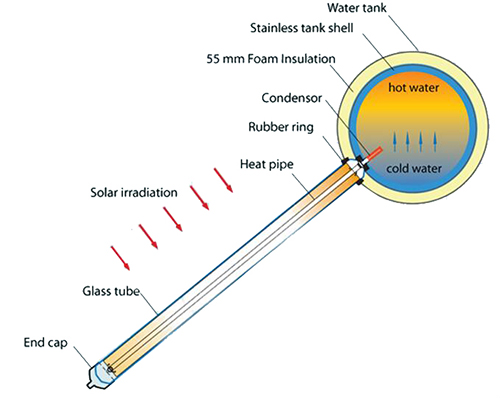

Tube |
Tube Structure |
All – Glass Double Tube co-axial structure |
|
Outer tube diameter and glass thickness |
Φ = 58 + 0.7mm & 1.6 mm + 0.15mm |
|
Inner tube diameter and glass thickness |
Φ = 47 + 0.7mm & 1.6 mm + 0.15mm |
|
Glass |
Material |
Borosilicate 3.3 Glass |
|
Iron Content |
≤0.01% |
|
Transmittance |
≥93% |
|
Thickness |
1.6mm |
|
Included Accessories |
1.Magnesium Bar (include),2 PT valve. |
|
Optional Accessories |
1500W or 2KW Electrical heater, Digital temperature controller TK-7Y |
|
Warranty & Useful life |
3 years for the full system/10years for vacuum tubes, 15 years design life |
|
Hail resistance |
It resists 25mm hail. |
|
Container loading:20GP/40HP |
70/170 |
58/150 |
49/128 |
40/105 |
37/94 |
31/82 |
30/79 |
25/64 |
