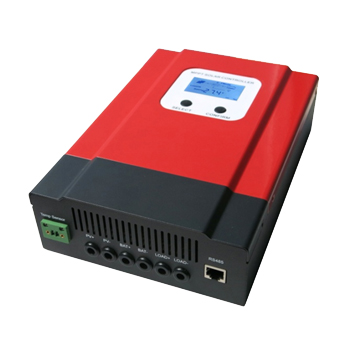

| Product Name: | MPPT solar charge controller MPPT48Z-III Series |
| Key Features |
◆ LCD MPPT solar charge controller,12/24/48VDC 20-60Amp
◆ Max PV input 150VDC, conversion efficiency 98%
◆ Three Stages charging with With Temperature Compensation
◆ Selectable battery or User-Defined charge voltage by software
◆ LCD Display PV. Battery, load, and output parameter, setup
◆ With DC Load port
◆ Load running mode: ON/OFF, PV voltage control, Dual Time control, PV+Time control
◆ Limiting Max Charge current, protect battery when solar panel over capacity
◆ RS485 PC monitoring and WiFi APP monitoring Option
|  | | Technical Specifications |
|
Item |
Model |
MPPT48Z-20III |
MPPT48Z-30III |
MPPT48Z-40III |
MPPT48Z-50III |
MPPT48Z-60III |
|
Output |
Rated Charge Voltage |
DC12V/24V/36V/48V, Automatic recognition |
|
Output VDC Precision |
≤±1.5% |
|
Rated Charge Current |
20A |
30A |
40A |
50A |
60A |
|
Rated output Load Current |
20A |
30A |
40A |
50A |
60A |
|
Load output control |
On mode, Off mode, PV voltage control mode, Time control, PV + Time control |
|
Starting Charge Voltage |
Higher than current battery voltage 5V |
|
Selectable battery |
Flooded, Sealed lead acid Gel battery ,other types of the batteries also can be defined |
|
Temperature Compensation |
-3mV/℃/2V (default) |
|
Input |
System Max. PV Power |
12V |
260W |
390W |
520W |
650W |
780W |
|
24V |
520W |
780W |
1040W |
1300W |
1560W |
|
36V |
780W |
1170W |
1560W |
1950W |
2340W |
|
48V |
1040W |
1560W |
2080W |
2600W |
3120W |
|
Max DC Voltage |
130VDC |
150VDC |
|
High voltage recovery |
125V |
145V |
|
Conversion Efficiency |
≥98% |
|
LCD Display |
PV VDC, battery type and VDC, charging VDC,Amp W, discharge KWH,Temp, working status,battery type and loadcontrol mode,supplier info setup |
|
Communication |
With RS485 COM Communication, Display and setup. Option RS486-USB Cable+ CD,Windons7/8/10 |
|
Discharge Mode |
ON/OFF mode, PV voltage control mode, Time control, PV & Time control mode |
|
Protection |
input Low voltage protection |
Higher than current battery voltage 3V |
|
input Over voltage protection |
150VDC |
|
battery Low Protection |
12VDC. Default 10.5V; Recovery 11V; It can be adjustable. Else Times relation |
|
Else protections |
Over Charge,Output Low Voltage, Output over current, Over Temp. PV and Battery reverse connection |
|
IP Grade |
IP25 |
|
Physical |
Product size |
D240*W168*H66 mm |
D270*W180*H83.7 mm |
|
Package size |
D289*W204*H101 mm |
D330*W245*H150 mm |
|
N.W./G.W.(kg) |
2.3/2.8 |
2.6/3.0 |
|

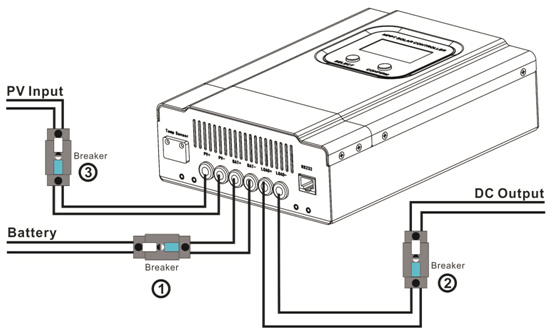

System connection
|

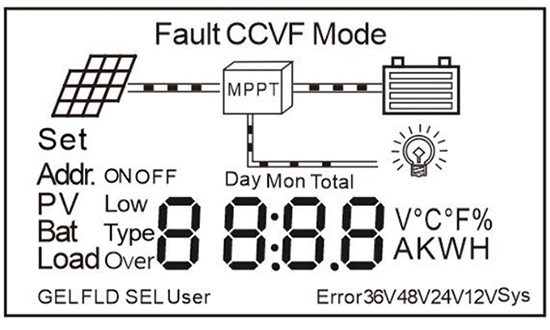

LCD MONITOR
|
| | |
|
|
|
