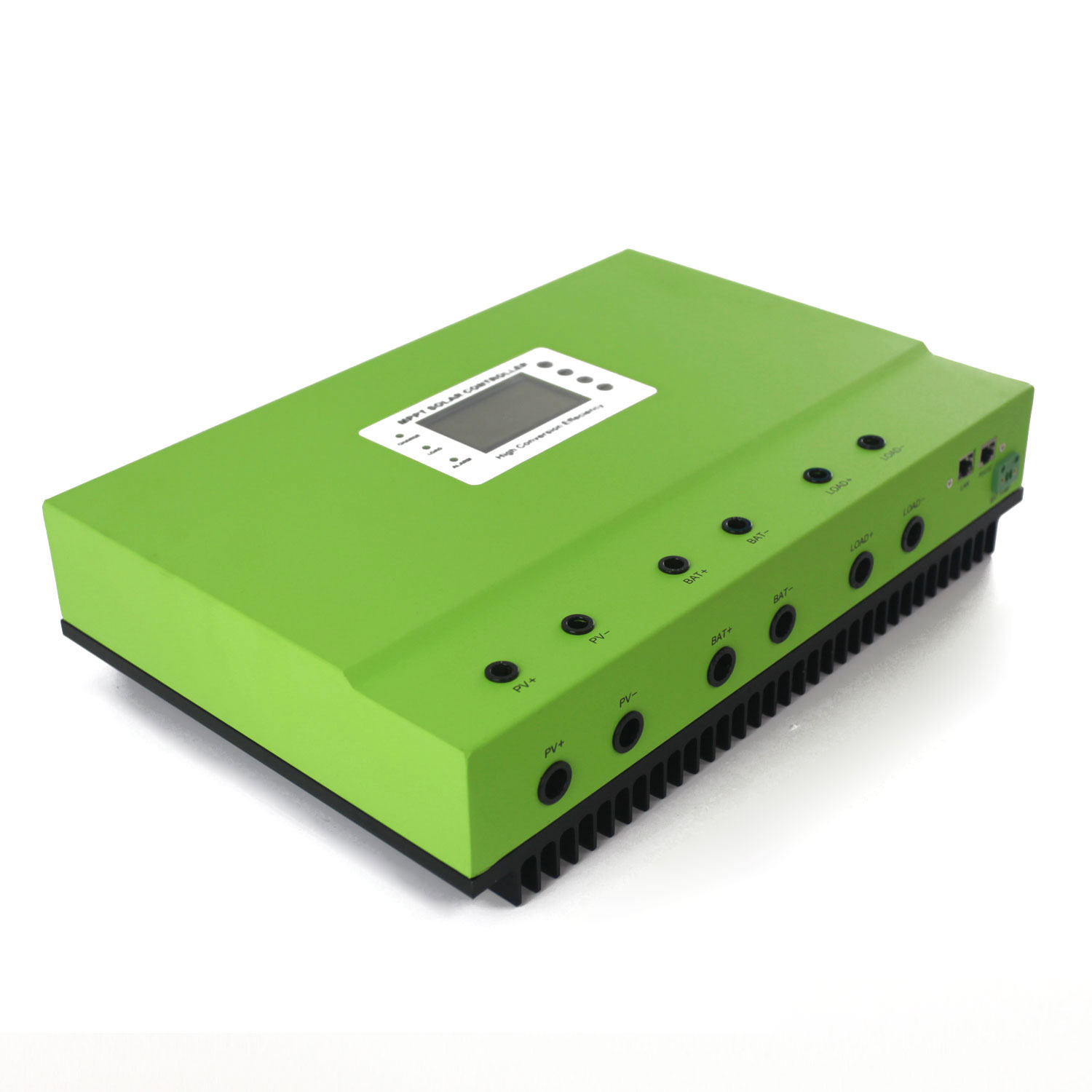

| Product Name: | MPPT solar charge controller MPPT-M Series |
| Key Features |
◆ LCD MPPT solar charge controller,48VDC 80A 100A，96VDC 50A
◆ Max PV input 150VDC or 300V , conversion efficiency 98%
◆ Three Stages charging with With Temperature Compensation
◆ Selectable battery or User-Defined charge voltage by software

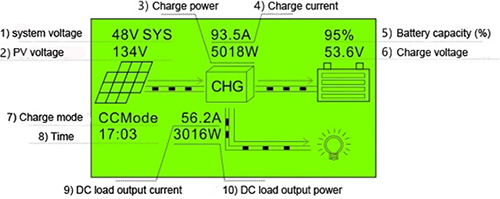

◆ LCD display PV VDC, Charge Amp WH , BAT VDC % , Load Amp W, Charging Mode,Time , setup , Fault info
◆ With DC Load port
◆ Load running mode: ON/OFF, PV voltage control, Dual Time control, PV+Time control
◆ Limiting Max Charge current, protect battery when solar panel over capacity
◆ RS485 PC monitoring and WiFi APP monitoring Option |  | | Technical Specifications |
|
Item |
Model |
MPPT48Z-80M |
MPPT48Z-100MI |
MPPT48H80 |
MPPT96H50 |
|
|
Product category |
Controller Properties |
MPPT (maximum power point tracking) |
|
|
MPPT efficiency |
≥99.5% |
|
|
System voltage |
Automatic recognition |
48V |
96V |
|
|
Heat-dissipating method |
Air cooling |
|
|
Input
Characteristics |
Max.PV input voltage(VOC) |
DC150V |
DC300V |
|
|
Start the charge voltage point |
Battery voltage + 3V |
Battery voltage + 10V |
|
|
Low input voltage protection point |
Battery voltage + 2V |
Battery voltage + 5V |
|
|
Over voltage protection point |
DC150V |
DC300V |
|
|
Rated PV power |
12V system |
1040W |
1300W |
－ |
－ |
|
|
24V system |
2080W |
2600W |
－ |
－ |
|
|
36V system |
3120W |
3900W |
－ |
－ |
|
|
48V system |
4160W |
5200W |
4160W |
－ |
|
|
96V system |
－ |
－ |
－ |
5200W |
|
|
Charge Characteristics |
Selectable Battery Types
(Default Gel battery) |
Sealed lead acid, Gel battery, Flooded
(Other types of the batteries also can be defined) |
|
|
|
Charge rated current |
80A |
100A |
80A |
50A |
|
|
Charge Method |
3-Stage: constant current(fast charging)-constant voltage-floating charge |
|
|
LOAD Characteristics |
Load voltage |
The same as the battery voltage |
|
|
Load rated current |
80A |
100A |
80A |
50A |
|
|
Load control mode |
On\Off mode, PV voltage control mode,
Dual-time control mode, PV + Time control mode |
|
|
|
Display & Communication |
Display mode |
LCD (128*64 dots) &backlight |
|
|
Communication mode |
8-pin RJ45 port/RS485/support PC software monitoring/
support WiFi module to realize APP cloud monitoring |
|
|
|
Other Parameters |
Protect function |
Input-output over \ under voltage protection,
Prevention of connection reverse protection etc. |
|
|
|
Operation Temperature |
-20℃~+50℃ |
|
|
Storage Temperature |
-40℃~+75℃ |
|
|
IP(Ingress protection) |
IP43 |
|
|
Max. connection size |
50mm2 |
|
|
Net Weight (kg) |
7.1 |
|
|
Gross Weight (kg) |
8.8 |
|
|
Product Size（mm） |
420*280*95 |
|
|
Packing Size(mm) |
510*368*210 |
|
|

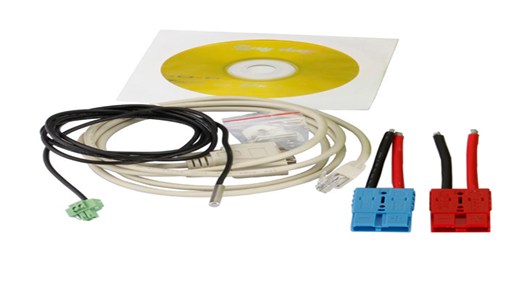

ACCESSORY |

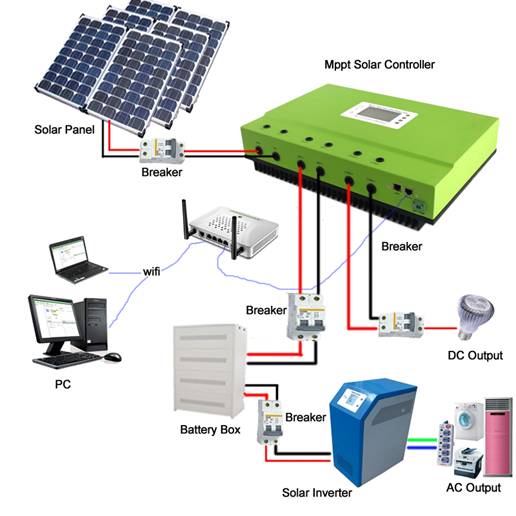

SYSTEM CONNECTION
|

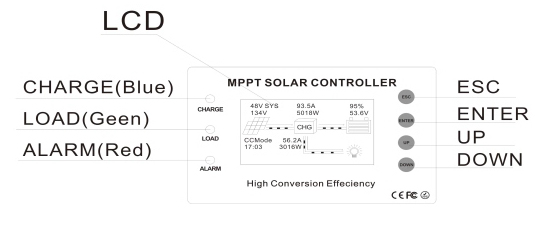

LED and LCD DISPLAY
|
| | |
|
|
|
