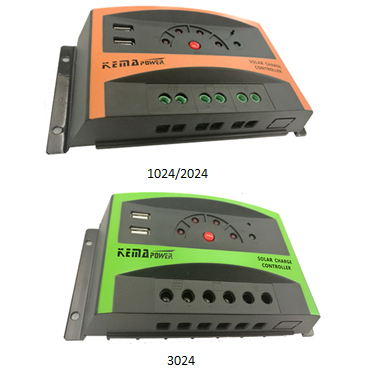

| Product Name: | PWM solar charge controller HT30U Series |
| Key Features |
◆ PWM solar charge controller 12/24V 10/20/30A
◆ LED Display ,with 2 USB charger
◆ LED Indicators for Charing,Load, fault and protection status
◆ Bigger terminal , more safety and easy to installation
◆ Selectable Battery type,4 stage Charge,adjustable charge parameter
◆ Temperature compensation Charge and clock function
◆ Load working mode , Normal,Light Control,Light and Double time control
◆ Protection for over charge, over discharge, overload, and short circuit,reverse polarity
◆ Communication with computer by RJ45 option
|  | | Technical Specifications |
|
ITEM |
MODEL |
HT30U-1024 |
HT30U-2024 |
HT30U-3024 |
|
Rated charge current |
10A |
20A |
30A |
|
Rated load current |
10A |
20A |
30A |
|
System voltage |
12/24V AUTO work |
|
Protection |
Over load |
≥120%, 60s;≥150%,10s,≥180%,0.2s |
|
Shortcircuit |
Yes |
|
Over voltage |
Yes |
|
Low Voltage Disconnection(LVD) |
10.7V for 12VDC, 21.4V for 24VDC |
|
Low Voltage Reconnection(LVR) |
12.6V for 12VDC,25.2V for 24VDC |
|
Reverse polarity |
protection for solar panel ,battery and DC load. |
|
Reverse current |
Yes.at night |
|
Static current |
≤ 12.5mA ( USB is OFF ) |
|
Voltage drop |
Loop Voltage Drop |
Charging:<0.22V,Discharging:<0.12V |
|
Charging voltage |
Float charge |
13.8 for 12VDC,27.6V for 24VDC |
|
Equalizing charging |
14.6V for 12VDC,29.2V for 24VDC |
|
Open Circuit Voltage of solar panel |
12VDC ≤50V; 24VDC ≤100V |
|
Charging control mode |
PWM |
|
LED Display |
LED for Charing,Load, fault and protection status |
|
USB Charge |
2*5V 1.0A |
2*5V 1.0A |
2*5V 1.0A |
|
Running temperature |
-20 ~ +55 °C |
|
Storage temperature |
-30 ~ +80 °C |
|
Humidity requirements |
10% -90%, no condensation |
|
Installation cable area |
≤6mm2 |
≤6mm2 |
≤16mm2 |
|
Protection class |
IP30 |
|
Case material |
ABS |
|
Product size(mm) |
188*95*46.5 |
|
Product Weight(kg) |
0.34 |
0.34 |
0.345 |
|
Carton size(mm) |
535*425*200 |
|
Carton weight(kg) |
15KG / 30PCS |
|
Notes |
Model HT**U: ,U-5V/1A USB,24--12V/24VDC |
| | |
|
|
|
